Distance to Combustible Materials for Stove Pipes
Written by Dries Nijs3 min read
Safe Distance from Stove Pipe to Combustible Material
A single-wall stove pipe should be kept about three times its diameter away from combustible material, while a double-wall pipe can be much closer. For Ø80 mm, this means around 40 cm, but the CE marking and manual are binding.
When in doubt, use the largest specified distance and consult a professional.
The safe distance from stove pipe to combustible material depends on the type of pipe, but the rule of thumb is clear. A single-wall stove pipe is generally kept about three times the pipe diameter away from wood, plaster, or furniture. For a pipe of Ø80 mm, this equates to about 40 cm.
A double-wall insulated pipe can be much closer, often between 5 and 15 cm. The truly binding distance is always found on the CE marking and in the manufacturer's manual.
These numbers are not arbitrary. Each manufacturer tests their pipe and prints the tested safety distance on the type plate. If your situation differs, the specified value applies, not the general rule you read online.

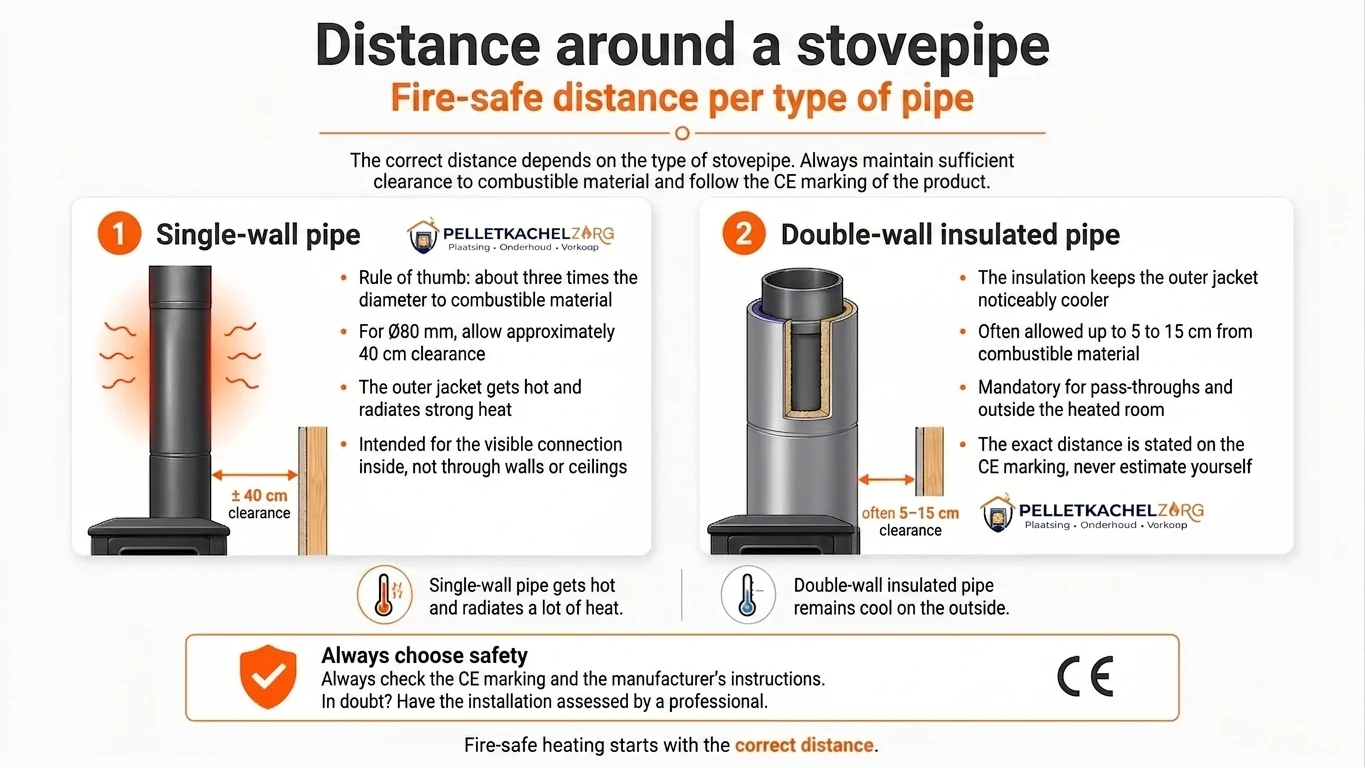

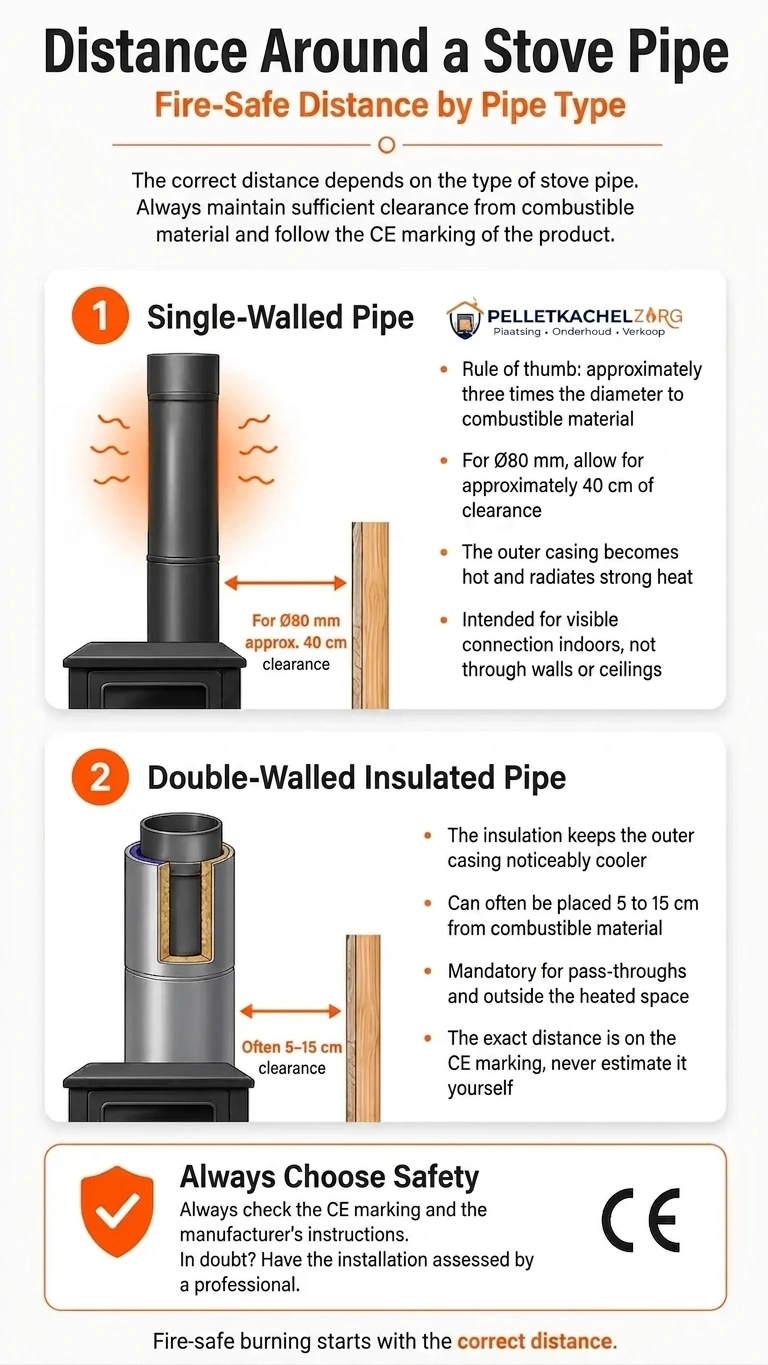

Distance by Type of Stove Pipe: Single-Wall vs. Double-Wall
Single-Wall Pipe
Rule of thumb: about three times the diameter to combustible material
For Ø80 mm, expect around 40 cm of free space
The outer shell gets hot and radiates significant heat
Intended for visible indoor connections, not through walls or ceilings
Double-Wall Insulated Pipe
Insulation keeps the outer shell noticeably cooler
Can often be 5 to 15 cm from combustible material
Required for passages and outside heated spaces
The exact distance is on the CE marking, never estimate
The difference lies in the heat on the outside. A single-wall pipe directly emits that heat, while a double-wall pipe has an insulation layer that keeps the shell cool enough to stay closer to wood. Therefore, the same situation with single-wall requires much more space.
In practice, you choose single-wall only for the short, visible section just above the stove, where there is enough free space. As soon as you go past wood, through a wall, or outside, switch to a double-wall pipe that can stay closer.
When in doubt, always use the largest specified distance, as the manual and CE marking are binding, not any general rule of thumb.
Certified Pass-Through Sets
For each wall or ceiling pass-through, we use an approved set with spacers. This prevents creeping overheating.
Tailored Advice for Your Situation
We assess beams, hidden wood, and furniture on-site. In case of doubt, we use the largest safe distance.
How to Measure the Distance Correctly
Correct measurement starts at the right point and ends at the nearest combustible surface. Work systematically.
Measure from the outside of the pipe to the nearest combustible point, not from the center.
Check the ceiling, roof beams, and wooden rafters directly above the stove.
Consider hidden wood, as framing behind plasterboard or a wooden stud in the wall counts.
The minimum stove pipe wall distance mainly applies to a combustible wall; it differs for solid stone or concrete.
Keep furniture, curtains, and wall coverings outside the specified zone, even if you move them occasionally.
Use a certified wall or ceiling pass-through set with the correct spacers for each passage.
A certified set with spacers determines the safe flue distance in the passage for you. If you want to know how such a connection fits together neatly and airtight, see how to install double-wall stove pipes.
Common Mistakes with Distance
Measuring from the center of the pipe instead of the outside
Overlooking hidden wooden framing behind plasterboard
Running a single-wall pipe too close to a wooden beam
Not using a certified set for a wall or ceiling pass-through
Placing a cabinet or curtain in the safety zone after installation
Not reading the manual and relying solely on a general rule of thumb
Why This Distance Is Crucial
Wood doesn't need an open flame to ignite. Prolonged heat causes wood to off-gas, a process called pyrolysis. This lowers the ignition temperature slowly, sometimes to well below 150 degrees.
A beam right next to a single-wall pipe can slowly char over months and eventually ignite spontaneously. This slow self-ignition at low temperature is insidious, as you won't notice it for a long time.
Extra risk arises in areas where heat lingers. A pipe running through a tight enclosure or corner cools less effectively, causing surrounding wood to get warmer than expected. In such cases, ample distance or an insulated pipe is not a luxury.
The diameter plays a role in the calculation, as a wider pipe requires more free space. Therefore, first determine what diameter stove pipe you need before calculating the distance. Proper burning also keeps the pipe cooler, and thus safe burning with wood or pellets contributes to safety.
What the Rules Say in Belgium and the Netherlands
The legal basis differs per country and sometimes per municipality. In Belgium, installers refer to the NBN standards for flue gas discharge, which require each pipe to be installed according to the manufacturer's instructions and with the correct distances.
In the Netherlands, the Building Decree and NEN standards apply, with similar requirements. In both countries, the CE marking of the pipe remains the binding source for the minimum distance.
Your insurer may ask after damage whether everything was installed according to those regulations. Missing a certified pass-through or correct distance risks a coverage dispute.
If you're unsure whether you need single-wall or double-wall, read the difference between single-wall and double-wall flue. To avoid common mistakes, see the common mistakes with flues.
If you're not sure if the distances are correct, have a professional check before you light the stove. Request a free quote or advice.
Need a Flue Inspection or Safe Installation?
Related articles
Frequently asked questions
For a single-wall stove pipe, the rule of thumb is to keep it about three times the diameter away from combustible material. For a pipe of Ø80 mm, this equates to about 40 cm. More details can be found in our article on distance to combustible materials for stove pipes.
A double-wall stove pipe can often be closer to combustible material, usually between 5 and 15 cm. The exact distance is specified on the pipe's CE marking. Read more about the benefits of double-wall flues in our article on double-wall flues.
The correct distance to combustible materials is crucial for safety and prevents fire hazards. Incorrect installation can lead to overheating and fire. For a safe installation, you can view our quote request for professional advice.
If unsure about the correct distance, always use the largest specified distance and consult a professional. The manufacturer's manual and CE marking are binding. Consider a fire safety check for extra assurance.
Installing a stove pipe yourself is possible but requires precision and knowledge of safety regulations. For a safe and correct installation, we recommend hiring a professional. Read more about installing stove pipes in our article on how to install double-wall stove pipes.
